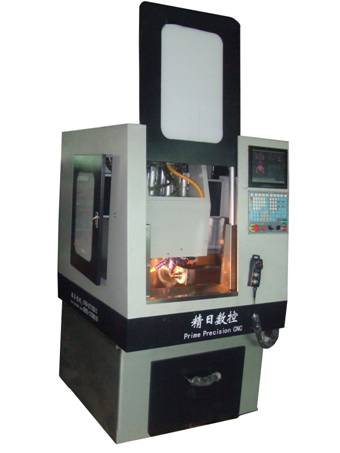

5-Axis High Speed Automatic Tool Changing CNC Machine for Jewelry/ Watch
Model no: CNC-J560
Applications:
i) Can be applied on stainless steel, titanium, high speed and precise milling
ii) Specialized Spindle ER16 for Milling Machine, work on 3D and angle milling
iii) With Rotary Tools Magazine to reduce the Tool Changing Time from 1.8-3.0 sec
Specialized Functions:
i) Automatic Tool Changing System
ii) Gold/ Silver Collector
Main Specifications:
| Spindle Power (kW) |
5.5/ 4.5/ 3.2 |
Spindle (rpm) |
3,000 to 24,000 |
X, Y, Z Axes Working Range (mm) |
X:450; Y:300; Z:300 |
Sprindle Skip & Drive |
Inner cone 0.005, Frequency Conversion |
Maximum Job Loading (kg) |
100 |
Maximum Machining Rate (m/min) |
3.5 |
Distinguishability (XYZ) (mm) |
0.000625 |
Reciprocate Position (XYZ) (mm) |
±0.01 |
Working Table Size (mm) |
540 x 480 |
Net Weight (kg) |
2,200 |
Driving System |
Servo Motor (400W/ 750W/ 1,000W) |
Cooling System |
Water Cooling |
Controlling System |
Made in Taiwan (Other system can be chosen) |
Screw Leader |
Made in Germany |
Lubrication System |
Automatic Oil Lubricating |
Tooling Sensor |
Automatic |

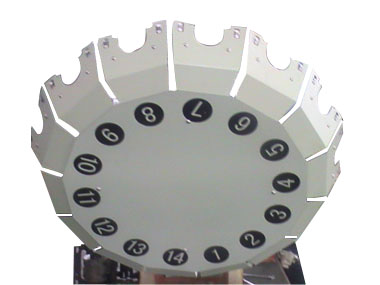

Rotary Tools Magazine for 5-Axis Machine
5-Axis 3-Heads CNC Machine for Jewelry & Watch
Model no: CNC-J530
Main Specifications:
| Spindle Power (kW) |
1.5 x 1/ 0.4 x 2 |
Spindle (rpm) |
24,000 |
X, Y, Z Axes Working Range (mm) |
X: 400; Y:180; Z:250 |
Sprindle Skip & Drive |
Inner cone 0.005, Frequency Conversion |
Maximum Job Loading (kg) |
100 |
Maximum Machining Rate (m/min) |
3.5 |
Distinguishability (XYZ) (mm) |
0.000625 |
Reciprocate Position (XYZ) (mm) |
±0.01 |
Working Table Size (mm) |
φ60 |
Net Weight (kg) |
1,000 |
Driving System |
Servo Motor |
Cooling System |
Water (Oil) Cooling |
Controlling System |
Made in Taiwan (Other system can be chosen) |
Screw Leader |
Made in Germany |
Lubrication System |
Automatic Oil Lubricating |
|
