    5-Axis 6-Heads CNC Machine for Eyewear Front
    Model no: CNC-E560


    Main Specifications:

    Spindle Power (kW)

    5/ 3.2/ 2.2/ 1.5

    Spindle (rpm)

    6,000 - 30,000

    X, Y, Z Axes Working Range (mm)

    X: 250-600; Y:200-400; Z:200-450

    Sprindle Skip & Drive

    Inner cone 0.005, Frequency Conversion

    Maximum Job Loading (kg)

    100

    Maximum Machining Rate (m/min)

    8

    Distinguishability (XYZ) (mm)

    0.000625

    Reciprocate Position (XYZ) (mm)

    ±0.01

    Working Table Size (mm)

    200-400 x 400-600

    Net Weight (kg)

    1,500

    Driving System

    Servo Motor (400W/ 750W/ 1,000W)

    Cooling System

    Water (Oil) Cooling

    Controlling System

    Made in Taiwan (Other system can be chosen)

    Screw Leader

    Made in Germany

    Lubrication System

    Automatic Oil Lubricating

    Tooling Sensor

    Automatic




    5-Axis 12-Tools Automatic Tool Changing CNC Machine for Eyewear
    Model no: CNC-E5120


    Functions:

    I) Material Storage and Automatic Feeder
    ii) Automatic Tool Changing System
    iii) Manipulator for Rotation

    Main Specifications:

    Spindle Power (kW)

    5/ 3.2/ 2.2/ 1.5

    Spindle (rpm)

    6,000 to 30,000

    X, Y, Z Axes Working Range (mm)

    X: 250-600; Y:200-400; Z:200-450

    Sprindle Skip & Drive

    Inner cone 0.005, Frequency Conversion

    Maximum Job Loading (kg)

    10-200

    Maximum Machining Rate (m/min)

    8

    Distinguishability (XYZ) (mm)

    0.000625

    Reciprocate Position (XYZ) (mm)

    ±0.01

    Working Table Size (mm)

    200-400 x 400-600

    Net Weight (kg)

    1,200-2,000

    Driving System

    Servo Motor (400W/ 1,000W)

    Cooling System

    Water (Oil) Cooling

    Controlling System

    Made in Taiwan (Other system can be chosen)

    Screw Leader

    Made in Germany

    Lubrication System

    Automatic Oil Lubricating

    Tooling Sensor

    Automatic

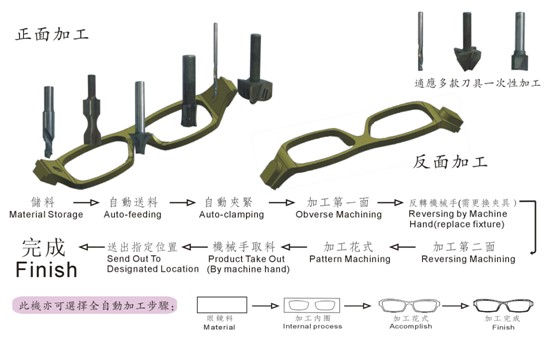

    Production Procedure
